We've already covered what makes an impact socket different from a standard one — thicker walls, black oxide finish, built for impact wrenches instead of hand tools. This post picks up where that one left off: what actually causes a socket to fail once it's on the job, and what to look for so you're not replacing sockets more often than you should be.
The two failure points
Almost every impact socket failure traces back to one of two spots:
- Cracking at the corners — usually from repeated high-torque impacts concentrating stress on the six points of contact inside the socket.
- Rounding out at the drive end or the fastener opening — from a socket that's flexing slightly under load instead of transferring torque cleanly.
Both are more likely to show up in 1" drive and larger applications, simply because the torque involved is higher and the margin for error is smaller.
Why corner contact is the weak point
A standard six-point socket contacts a hex fastener at six sharp corners. Under a hand wrench, that's rarely an issue — the torque is limited by how hard a person can pull. Under an impact wrench delivering repeated hammering blows, those corner contact points take the full force of every impact, over and over. Over time, that's where you see stress fractures start, especially on fasteners that are slightly worn, rusted, or not perfectly hex-shaped anymore (which describes a lot of fasteners that have been in the field for years).

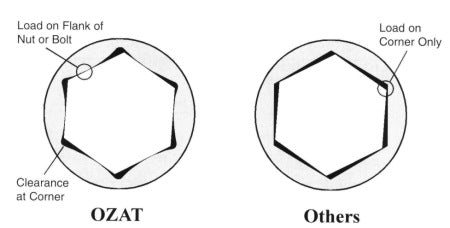

Flank drive: contact on the flat, not the corner
Flank drive sockets are machined so the socket contacts the fastener on the flats of the hex, rather than the corners. That spreads the load across a wider surface area instead of concentrating it at six points. Two things follow from that:
- Less stress concentration means less cracking over the life of the socket.
- Better grip on worn or rounded fasteners, since the socket isn't relying on sharp corners to bite.
It's a small geometry change, but it's the difference between a socket that lasts through years of heavy rail, mining, or oil and gas work and one that starts showing hairline cracks after a few months of daily impact use.
What this means for your socket budget
If you're going through impact sockets faster than expected, it's worth checking whether the failures are concentrated on corner-contact designs versus flank drive. Crews running heavy-duty applications — undercarriage work, wellhead assembly, structural bolting — tend to see the clearest difference, since that's where torque and impact frequency are both highest.
What we stock
Every Ozat impact socket we carry uses flank drive geometry, in both 3/4" and 1" drive, SAE and metric, regular and deep length. Combined with the thicker wall sections standard to impact-rated sockets, it's built to hold up under the kind of repeated high-torque use that wears out lower-spec sockets fast.
Browse the range:
If your application needs something outside standard sizing, we build custom impact sockets to spec — covered in an upcoming post in this series.
